All About Colors

This page is a collection of all of py5’s color-related integrations with other Python libraries.

In addition to what is documented here, the Charts, Plots, and Matplotlib page documents a few color-related matplotlib contributions. Scroll to the bottom of the page to read about Named Colors and a new Colormap Color Mode.

Setup

To use all of the features documented on this page, you’ll need to install the colour library with pip or with conda.

pip install colour

conda install colour -c conda-forge

For more information, refer to the colour library’s documentation on github.

Colour Library

The colour library is integrated into py5. Any method with color parameters that accepts Hex Color Codes or Hexadecimal Integers will also accept instances of the colour.Color class.

The colour library provides extensive color-related functionality that does overlap somewhat with py5’s built-in functionality. It is the colour library’s unique features that make this integration useful. We will demonstrate some of the features here, but also have a look at the colour library’s documentation on github for the complete feature set.

One of the unique features that will be made clear here is that the colour library supports the HSL (Hue, Saturation, Lightness) color model. This contrasts with py5’s HSB (Hue, Saturation, Brightness) color model (also known as HSV, with the V standing for Value). The HSL and HSV color models are similar but are not the same. HSB (HSV) attempts to model how colors appear under light. HSL models the way different paints mix together to create color in the real world.

Our example Sketch below will experiment with this new library while also exploring the differences between the color models.

from colour import Color

import py5_tools
import py5

def setup():
    py5.size(400, 590)
    py5.background(240)
    py5.no_stroke()

    py5.color_mode(py5.HSB, 360, 1.0, 1.0)

    py5.fill(Color(hue=0, saturation=0.9, luminance=0.1))
    py5.rect(20, 20, 170, 170)

    py5.fill(Color(hue=0, saturation=0.9, luminance=0.5))
    py5.rect(20, 210, 170, 170)

    py5.fill(Color(hue=0, saturation=0.9, luminance=0.9))
    py5.rect(20, 400, 170, 170)

    py5.fill(0, 0.9, 0.1)
    py5.rect(210, 20, 170, 170)

    py5.fill(0, 0.9, 0.5)
    py5.rect(210, 210, 170, 170)

    py5.fill(0, 0.9, 0.9)
    py5.rect(210, 400, 170, 170)

    # add some text labels
    py5.fill("#fff")
    py5.text('luminance=0.1', 70, 105)
    py5.text('brightness=0.1', 255, 105)

    py5.fill("#000")
    py5.text('luminance=0.5', 70, 295)
    py5.text('luminance=0.9', 70, 485)
    py5.text('brightness=0.5', 255, 295)
    py5.text('brightness=0.9', 255, 485)


py5.run_sketch()

In our example, we were able to create instances of colour.Color and pass them to the fill() method.

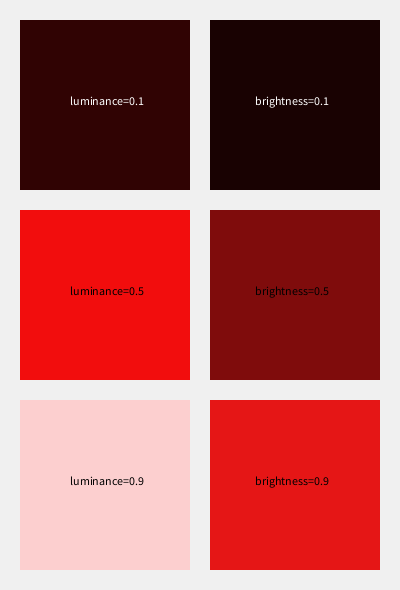

As you can see below, colors in the HSL model become whiter as the luminance approaches 100%. In the HSB model, colors become brighter forms of the given hue.

py5_tools.screenshot()

The remainder of the color features described on this page are built-in to py5 and are independent of the colour library.

Hex Color Codes

Any Web Color or Hex Color Code can be used as a color. The color code must always be a string with values representing red, green, blue, and optionally the alpha channel, in that order. This is consistent with the hex color codes found in HTML and CSS files.

The Hex Color Code is always a "#" character followed by a 6 or 8 digit hexadecimal number. If a 6 digit hexadecimal number is used, the color has no transparency. If an 8 digit hexadecimal number is used, the color has an alpha channel. The Hex Color Code should always be a string, wrapped in quotes. Uppercase and lowercase are both fine.

A 6 digit example is "#CC6633" and an 8 digit example is "#CC663399".

You may also use Shorthand hexadecimal form. With this specification, the Hex Color Code is always a "#" character followed by a 3 or 4 digit hexadecimal number. To convert shorthand form to the canonical form, repeat each digit. For example, "#C63" is the same as "#CC6633", and "#C639" is the same as "#CC663399".

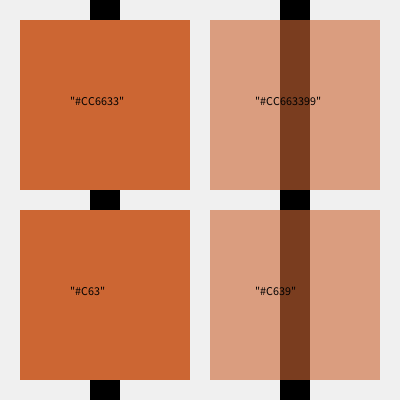

Let’s create a simple example Sketch that demonstrates the use of Hex Color Codes.

def setup():
    py5.size(400, 400)
    py5.background(240)
    py5.no_stroke()

    # add a black bar so the transparency is obvious
    py5.fill("#000000")
    py5.rect(90, 0, 30, 400)
    py5.rect(280, 0, 30, 400)

    py5.fill("#CC6633")
    py5.rect(20, 20, 170, 170)

    py5.fill("#C63")
    py5.rect(20, 210, 170, 170)

    py5.fill("#CC663399")
    py5.rect(210, 20, 170, 170)

    py5.fill("#C639")
    py5.rect(210, 210, 170, 170)

    # add some text labels
    py5.fill("#000")
    py5.text('"#CC6633"', 70, 105)
    py5.text('"#C63"', 70, 295)
    py5.text('"#CC663399"', 255, 105)
    py5.text('"#C639"', 255, 295)


py5.run_sketch()

py5_tools.screenshot()

Hexadecimal Integers

If you like, you can also use a Hexadecimal Integer such as 0x99CC6633. These are similar to the previously described Hex Color Codes. The main difference is the alpha value is moved to the beginning.

For this specification, it is always 0x followed by 8 values, and the order is alpha, red, green, and blue. Do not use quotes. Uppercase and lowercase are both fine. The Hexadecimal Integer 0x99CC6633 represents the same exact color as "#CC663399".

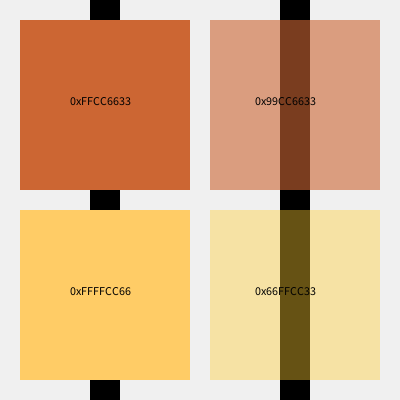

Let’s use this in an example sketch.

def setup():
    py5.size(400, 400)
    py5.background(240)
    py5.no_stroke()

    # add a black bar so the transparency is obvious
    py5.fill(0x00000000)
    py5.rect(90, 0, 30, 400)
    py5.rect(280, 0, 30, 400)

    py5.fill(0xFFCC6633)
    py5.rect(20, 20, 170, 170)

    py5.fill(0xFFFFCC66)
    py5.rect(20, 210, 170, 170)

    py5.fill(0x99CC6633)
    py5.rect(210, 20, 170, 170)

    py5.fill(0x66FFCC33)
    py5.rect(210, 210, 170, 170)

    # add some text labels
    py5.fill(0x00000000)
    py5.text('0xFFCC6633', 70, 105)
    py5.text('0xFFFFCC66', 70, 295)
    py5.text('0x99CC6633', 255, 105)
    py5.text('0x66FFCC33', 255, 295)


py5.run_sketch()

py5_tools.screenshot()

Printing Colors

Let’s take a small diversion.

Printing color values in Processing outputs odd looking numbers. For example, printing the color created with py5.color(204, 102, 51, 153) yields the number -1714657741. Why is it such a large negative number? And how can we look at that number and determine if it is our intended color?

Rather than ponder these mysteries, py5 added some Python magic to colors so that they display useful information when printed. For example:

print(py5.color(0xFFCC6633))

Py5Color(RGB, red=204/255, green=102/255, blue=51/255, alpha=255/255, hue=20/360, saturation=75/100, brightness=80/100)

That’s much easier to comprehend than -1714657741.

You will never create Py5Color instances directly. They are created for you with color() as well as any other method that returns colors (such as Py5Shape.get_fill()).

Also, observe that you can create colors in py5 outside of a running Sketch. When colors are created this way, it will always use the default RGB color mode settings, limiting each color channel to 255.

Let’s experiment with this in an example.

def setup():
    py5.size(400, 400)
    py5.background(240)
    py5.no_stroke()

    fill_color = py5.color("#CC6633FF")

    print(fill_color)

    # change the color mode
    py5.color_mode(py5.HSB, 360, 100, 100)

    print(fill_color)
    print("hex color", py5.hex_color(fill_color))

    py5.fill(fill_color)
    py5.rect(20, 20, 360, 360)


py5.run_sketch()

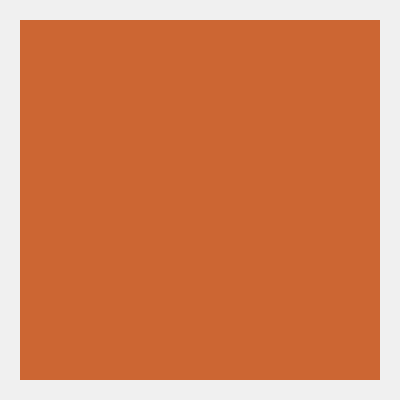

Notice that our color changed its printed representation when the color mode changed. It maintains a link to its creator. Clearly this makes it much easier to debug color-related code in a py5 Sketch.

This example also includes a call to the hex_color() method, demonstrating how to convert a color back to an 8-digit Hex Color Code.

py5_tools.screenshot()

Never again will py5 users have to decipher the meaning of numbers like -1714657741.
