# trigonometry for animation#

Trigonometry (often shortened just to trig) is a branch of mathematics that studies triangles and uses various mathematical functions, such as sine, cosine and tangent, to calculate angles and distances. You may have taken classes covering trigonometry concepts before, but you won’t be expected to know it by heart to use it in py5.

In digital spaces, like games or py5 sketches, trigonometry can be great for simulating physics, such as periodic motion. This refers to any motion that repeats itself at regular intervals, like the swinging of a pendulum or the orbit of the moon around the Earth. When we discuss periodic motion, each cycle is one complete repetition of this motion, and each period is the time it takes for that cycle to complete.

A basic application of trigonometry (from which we can derive other, more complex, mathematical functions) uses the relationship between sides of a right triangle, and their lengths, to determine the angle of a corner. We use theta, or its symbol $$\theta$$, to represent this unknown angle (A, in the diagram below).

A simple trigonometric triangle. Note the naming of each side relative to angle A. TheOtherJesse (Public domain), from Wikimedia Commons

If you know the lengths of any two of these triangular sides, finding the angle of A is easy! Which sides you are already aware of will determine which trigonometric function you have to use.

$$sine = opposite \div hypotenuse$$

$$cosine = adjacent \div hypotenuse$$

$$tangent = opposite \div adjacent$$

Why might you need to know this angle? Well, any two points can be represented with this sort of triangular relationship - just draw a right angle between them, and by using trigonometry, you can determine how to point a line from one to the other. This sort of sine or cosine calculation might be useful when programming an enemy in a game to aim a laser at the player character, or when simulating forces like gravity. Let’s demonstrate the relationship between these sorts of calculations and rotations, using py5’s sin() and cos() functions.

Firstly, to make our calculations easier, we’ll use a variable for the scale of our circle - so that we can do our math based on this idea of the unit circle (a circle with a radius of 1) while still being able to see it. As long as we use this scale consistently, the math will still work!

You’ll also notice we start this code (at least, the draw() half) with a translate() function, which will place the 0,0 point in the exact center of the screen. Not only is this a good way to manage rotations, but this will also make our grid space resemble Cartesian coordinates, which are common for plotting graphs.

theta = 0
s = 200 # scale variable

def setup():
size(600,600)
no_fill()
stroke('#FFFFFF')
stroke_weight(3)

def draw():
global theta
background('#004477')
translate(width/2, height/2)
ellipse(0,0, diameter,diameter)
x = cos(theta)
y = sin(theta)
print(
round(x,1),
round(y,1)
)
line(0, 0, x*s, y*s)

run_sketch()

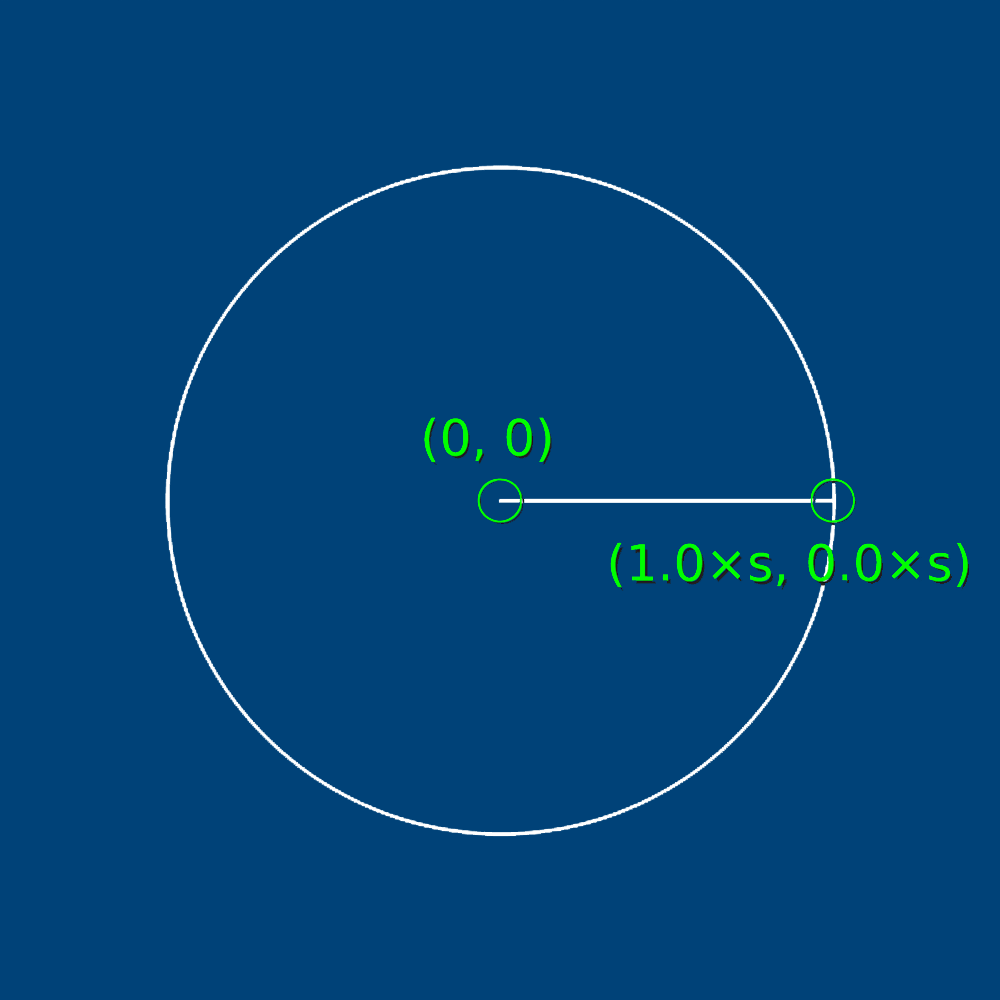

We’ve used round() here, with two arguments - the variable we’re rounding down, and the number of decimal places to round to. If you run this code now, in addition to seeing the cos() and sin() values of 1.0 and 0.0 respectively, you’ll see a line at the position of zero radians of rotation.

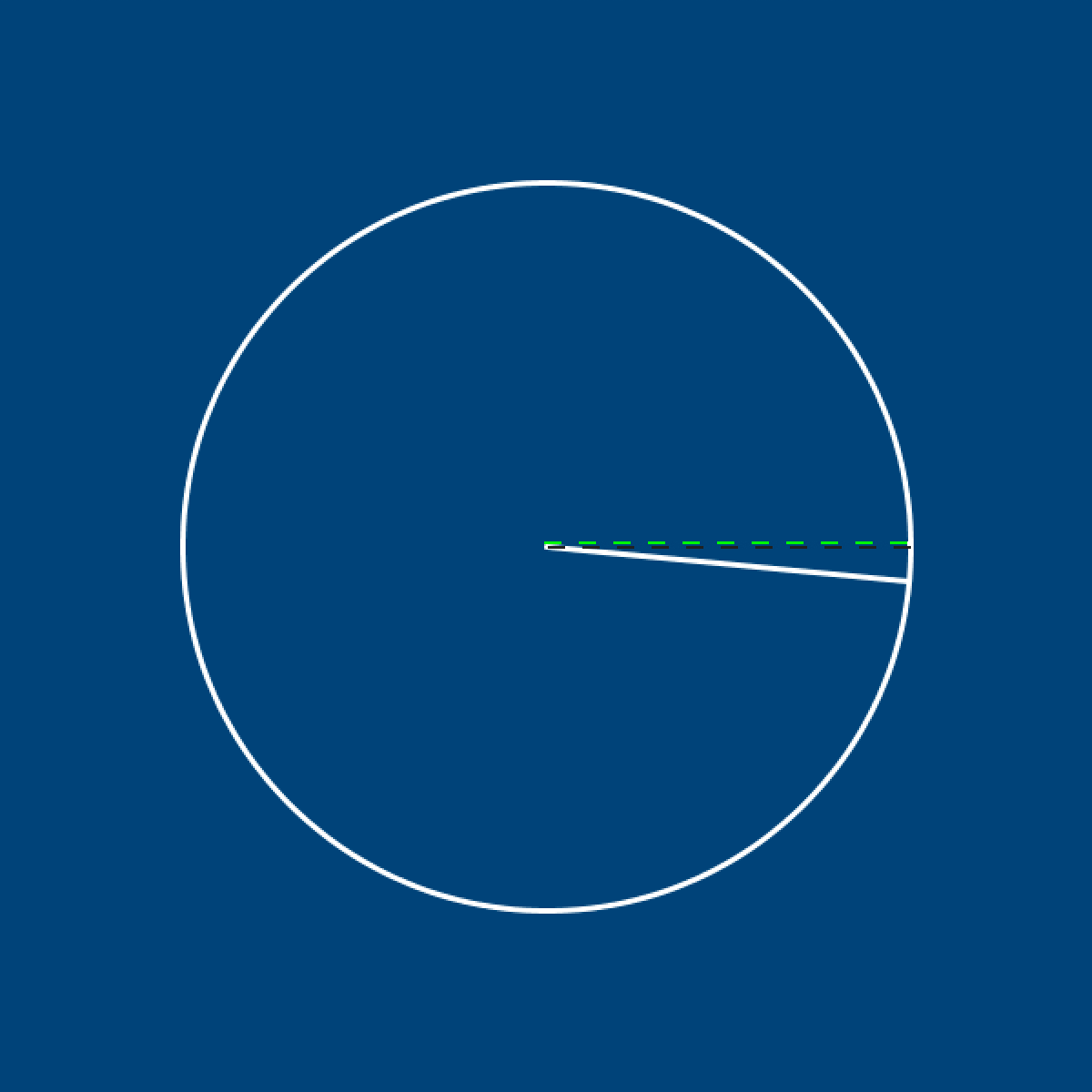

If you increase the value of theta slightly, to 0.1, this line’s angle will increase in the clockwise direction.

Want to mimic the 45 degree angle in that first unit circle diagram? If you recall, traversing half of the circle - 90 degrees of rotation - is half of $$\pi$$, so we can use py5’s built-in QUARTER_PI variable here.

Let’s also slightly alter how we draw our line - from line(0, 0, x*s, y*s) to line(0, 0, x*s, y*s*-1), reversing the y variable - so that this rotation moves counter-clockwise instead of in the clockwise direction.

theta = QUARTER_PI
s = 200 # scale variable

def setup():
size(600,600)
no_fill()
stroke('#FFFFFF')
stroke_weight(3)

def draw():
global theta
background('#004477')
translate(width/2, height/2)
ellipse(0,0, diameter,diameter)
x = cos(theta)
y = sin(theta)
print(
round(x,1),
round(y,1)
)
line(0, 0, x*s, y*s*-1)

run_sketch()


If you run this code, you’ll also notice that both sin() and cos() return 0.7. At a theta value of 45 degrees, sine and cosine are equal. These values will diverge as theta changes, with perfectly opposite values at 135 degrees.

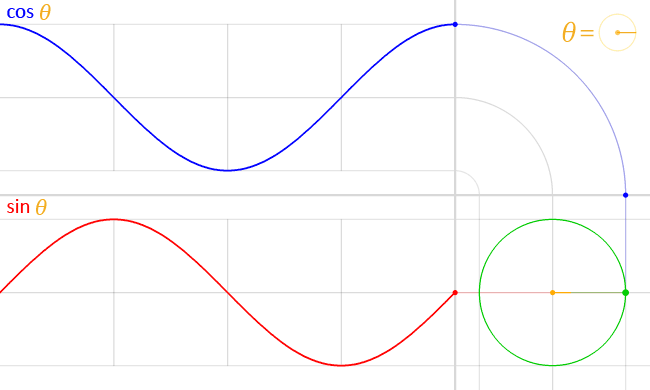

Here’s a lovely visualization of the way these values change along with the angle of theta:

LucasVB (Public domain), from Wikimedia Commons

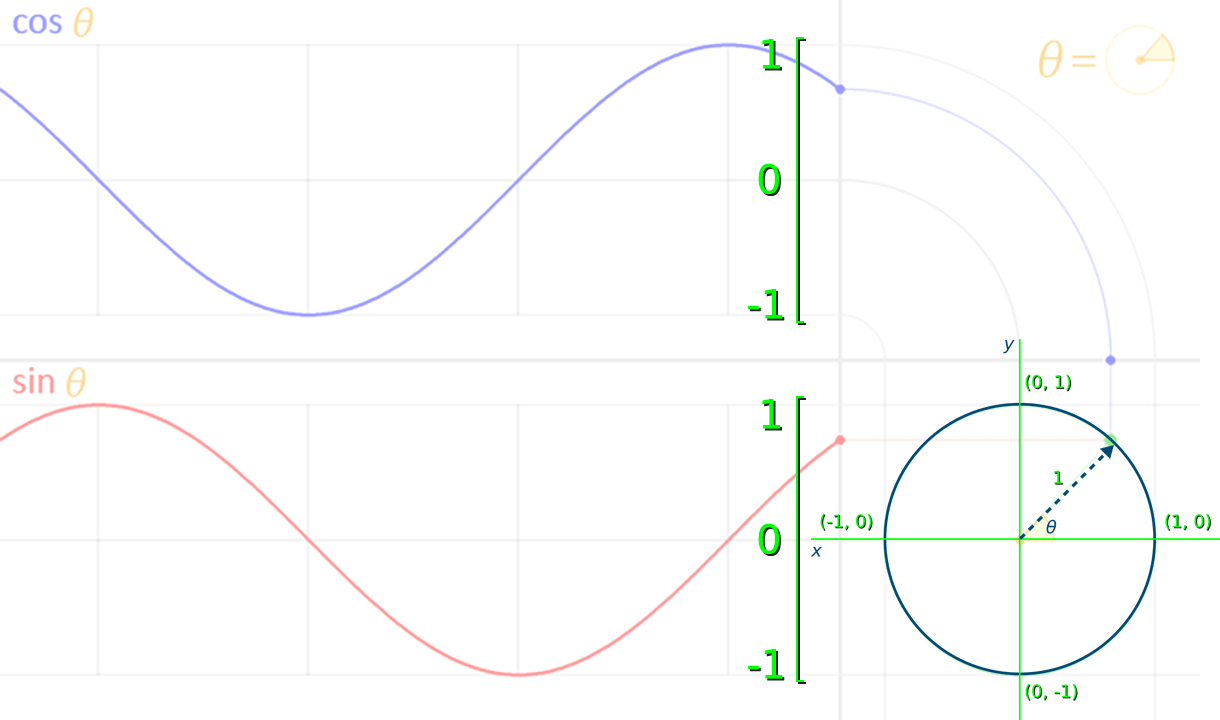

How do these waves correspond to the values being output now by print()? Here’s the annotated version, at that magical 45-degree moment:

Here, both these values are at roughly 0.7. The sine wave created by sin() represents the Y coordinate of the tip of the arrow, where it touches the circumference of the circle, in a range between -1 and 1. The cos wave created by cos() represents the X value of that arrowhead in the same range.

Let’s make a change to theta inside of our draw() function, so that we can actually see this movement in our sketch. Just a small increment each frame will do - something like 0.05.

theta = QUARTER_PI
s = 200 # scale variable

def setup():
size(600,600)
no_fill()
stroke('#FFFFFF')
stroke_weight(3)

def draw():
global theta
theta += 0.05
background('#004477')
translate(width/2, height/2)
ellipse(0,0, diameter,diameter)
x = cos(theta)
y = sin(theta)
print(
round(x,1),
round(y,1)
)
line(0, 0, x*s, y*s*-1)

run_sketch()

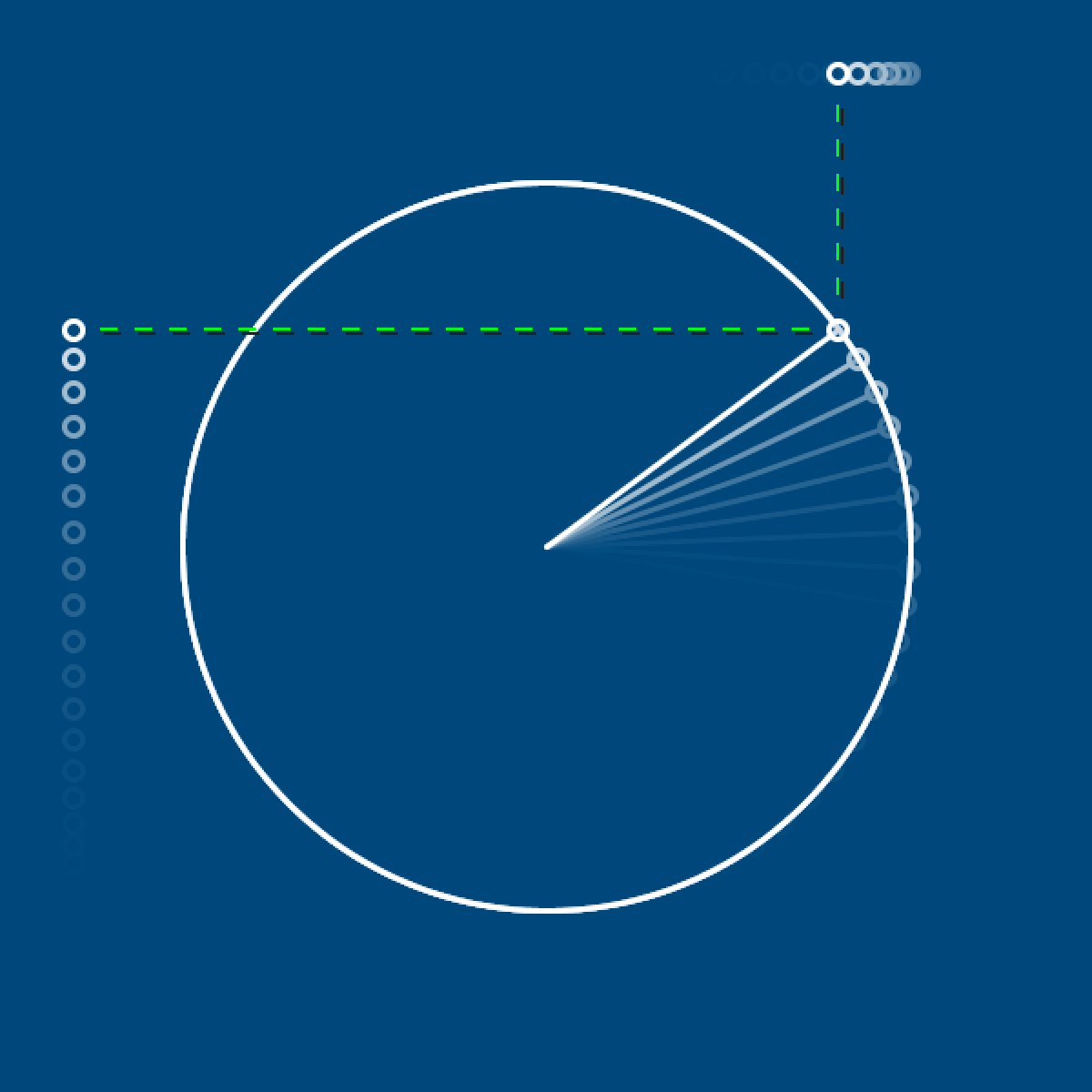

If we add a few ellipses in the right places, it might help us visualize how this is all working. We’ll be adding one that follows the horizontal motion of cos(), one that captures the vertical motion of sin(), and one that connects the two to the point where our line intersects with the circumference of the circle.

theta = QUARTER_PI
s = 200 # scale variable

def setup():
size(600,600)
no_fill()
stroke('#FFFFFF')
stroke_weight(3)

def draw():
global theta
theta += 0.05
background('#004477')
translate(width/2, height/2)
ellipse(0,0, diameter,diameter)
x = cos(theta)
y = sin(theta)
print(
round(x,1),
round(y,1)
)
line(0, 0, x*s, y*s*-1)

# These might help...
ellipse(-width/2+40, y*s*-1, 10, 10) # Sine
ellipse(x*s, -height/2+40, 10, 10) # Cosine
ellipse(x*s, y*s*-1, 10, 10) # Where the circumference and line meet!

run_sketch()

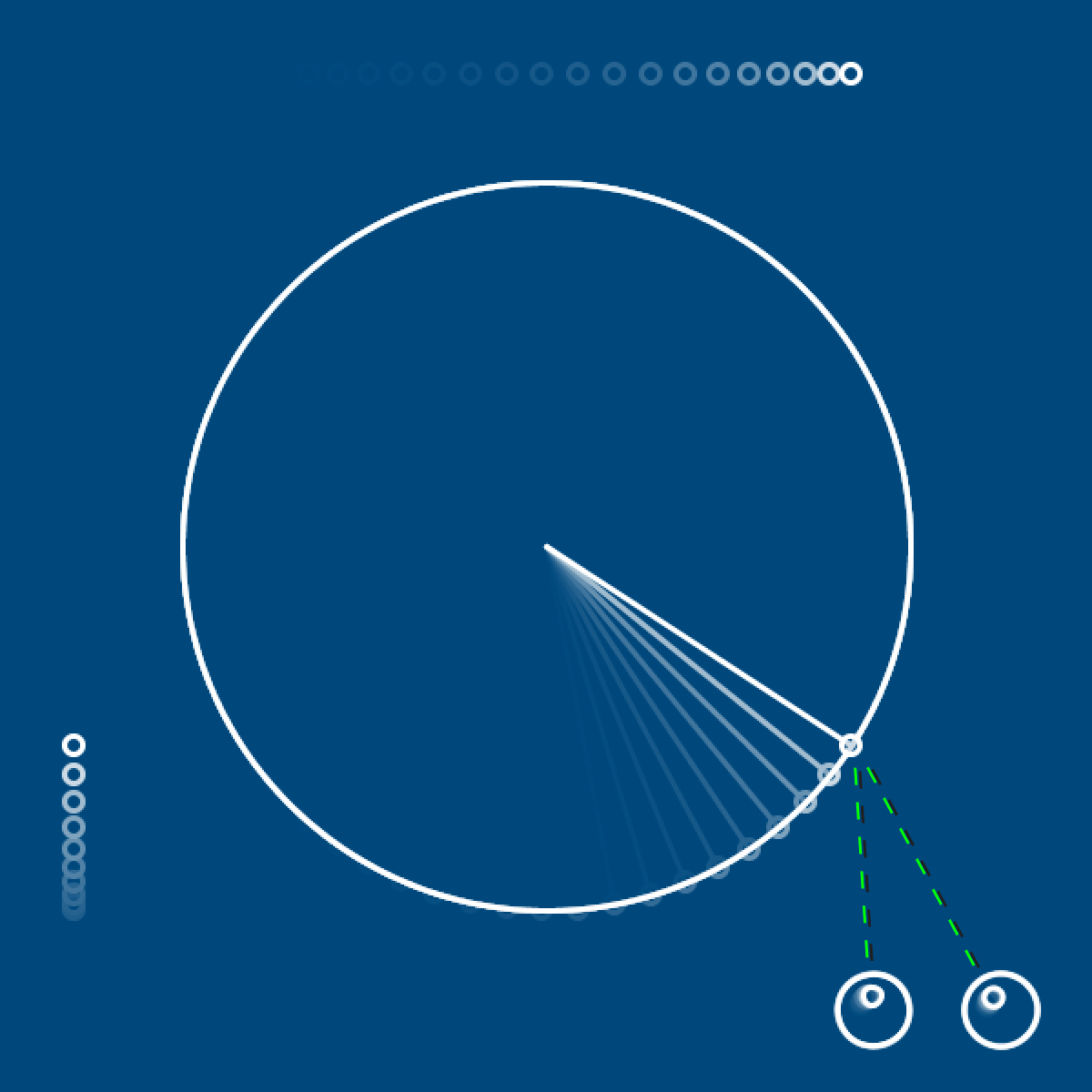

Demonstrating the use of tangent is slightly less obvious, but there’s a neat application for its inverse function, arctangent, that we can demonstrate here. The X Window System for the operating system Linux includes a feature called xeyes, with a pair of eyes that follow your mouse pointer. This is especially useful when you have multiple large displays, and might lose your cursor somewhere! Using py5’s arctangent function, atan2() to determine the rotation of each eye, we can make our own pair that will follow theta.

theta = QUARTER_PI
s = 200 # scale variable

def setup():
size(600,600)
no_fill()
stroke('#FFFFFF')
stroke_weight(3)

def draw():
global theta
theta += 0.05
background('#004477')
translate(width/2, height/2)
ellipse(0,0, diameter,diameter)
x = cos(theta)
y = sin(theta)
print(
round(x,1),
round(y,1)
)
line(0, 0, x*s, y*s*-1)

# Ellipses showing sine, cosine and where they meet
ellipse(-width/2+40, y*s*-1, 10, 10)
ellipse(x*s, -height/2+40, 10, 10)
ellipse(x*s, y*s*-1, 10, 10)

# left eye
leftx = 180
lefty = 255
leftr = atan2(
y*s*-1 + lefty*-1,
x*s + leftx*-1
)
push_matrix()
translate(leftx,lefty)
rotate(leftr)
ellipse(0,0, 40,40)
ellipse(8,0, 10,10)
pop_matrix()

# right eye
rightx = 250
righty = 255
rightr = atan2(
y*s*-1 + righty*-1,
x*s + rightx*-1
)
push_matrix()
translate(rightx,righty)
rotate(rightr)
ellipse(0,0, 40,40)
ellipse(8,0, 10,10)
pop_matrix()

run_sketch()

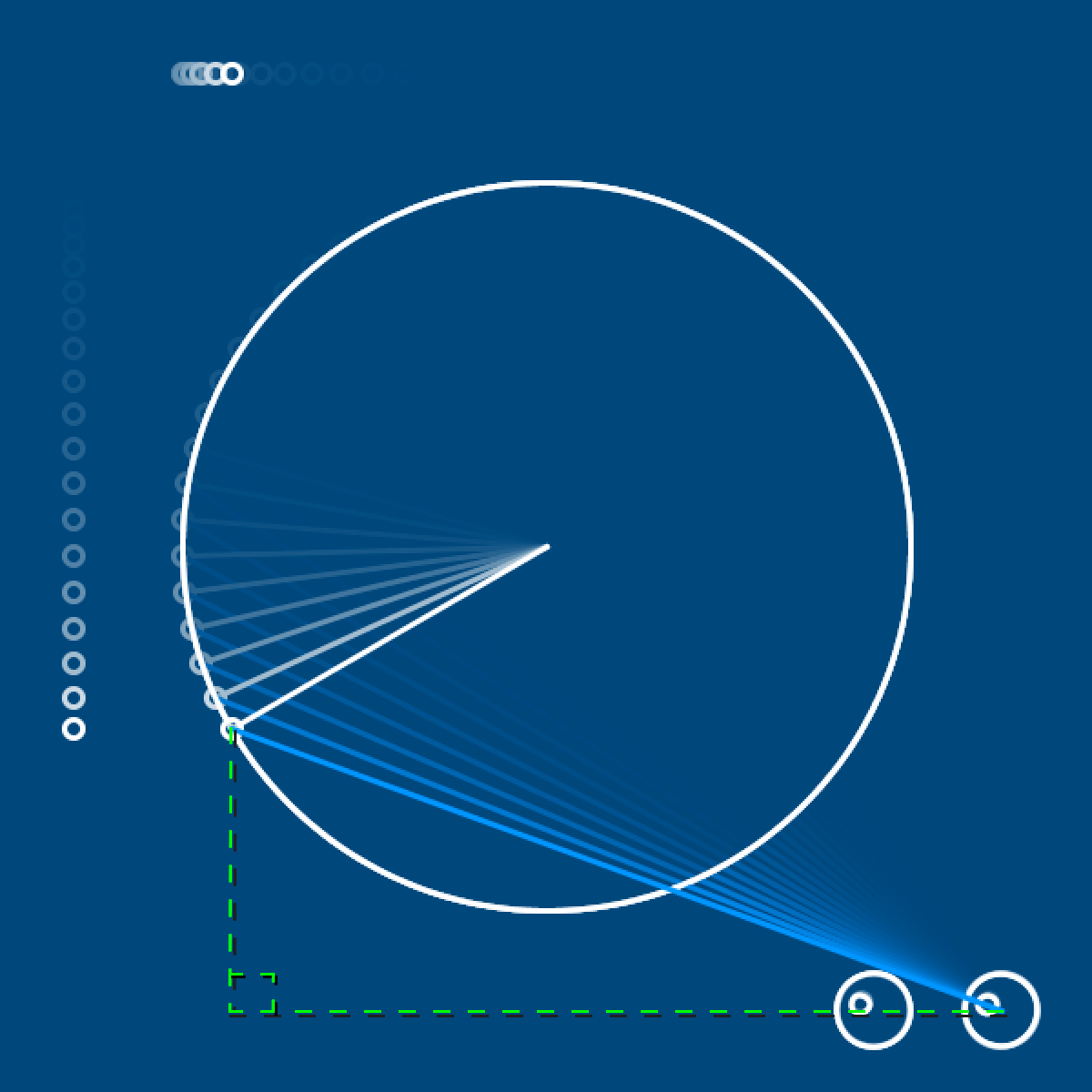

How does atan2() work? It’s the opposite of the tangent calculation from earlier - $$tangent = opposite \div adjacent$$. Tangent takes the angle, and gives you back the ratio between those sides. Arctangent instead takes a ratio and returns the angle. So by positioning each eye, then adding their values to our existing sin() and cos() values, we gave it the missing ingredients to determine the angle to theta.

Feeling frazzled by all this math? We’ll only use sine and cosine in this upcoming task - not tangents or arctangents.

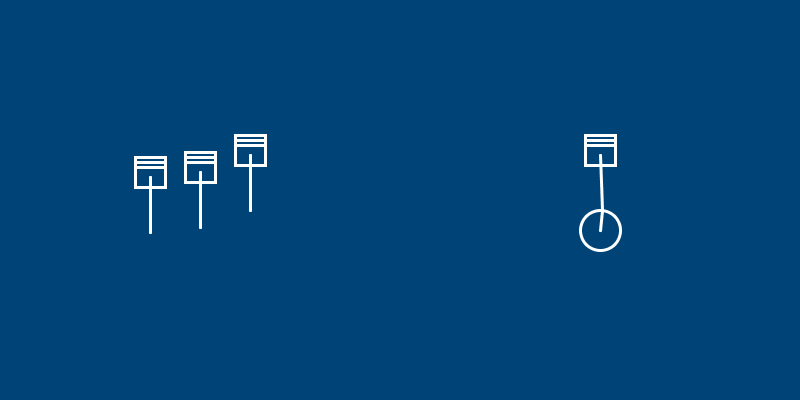

For this challenge, you’ll be recreating the diagram below, which is similar to pistons in an engine.

There’s a few different components here, so here’s some tips for tackling them.

You’ll need a setup() and draw() function, of course, and you should also create a variable for theta. It might also be a good idea to have some variable for the speed of your engine, so that fine-tuning it is possible.

theta = 0
speed = 0.05

def setup():
size(600,600)
no_fill()
stroke('#FFFFFF')
stroke_weight(3)

def draw():
global theta, speed
theta += speed
background('#004477')


For the three pieces on the left - representing a cross section of the engine - the exact shapes aren’t important, and can be drawn however you like. What will allow you to represent their movement is by wrapping them each in a push_matrix() and pop_matrix() function, and making sure that sin(theta) (which we already know represents vertical movement) is used to translate them.

For the circle on the right, where the piston is connecting to a crankshaft and spinning it, you’ll need both sin() and cos(), exactly as we used above. Use a different matrix for this crankshaft and the piston above it, so the piston can be translated here, too - as long as they are both connected in some way via sin() and cos(), they’ll move in sync!

Together with matrices, this is likely the most math-heavy of these py5 tutorials. Good job on making it this far. Looking for a further challenge? Consider other types of engine components - like the Scotch yoke - and how you might animate them using trigonometry.
